उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: FSK / NSK / FAG / NTN / KOYO / NACHI / OEM
प्रमाणन: ISO9001-2000 / CE / ROHS / UL
मॉडल संख्या: FC41245
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 1
मूल्य: 0.1-200USD
पैकेजिंग विवरण: 1) रंगीन सिंगल बॉक्स पैकिंग + कार्टन बॉक्स पैकिंग + पैलेट, 2) औद्योगिक पैकिंग
प्रसव के समय: विवरण की पुष्टि के बाद 5-7 दिन
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 100000pcs/महीना
असर -विधा: |
FC41245 |
FC41245 असर आकार: |
25*60*45 मिमी |
FC41245 असर वजन: |
0.685 किलोग्राम |
प्रमाणपत्र: |
ISO9001-2000 / CE / ROHS / UL |
पंक्ति: |
दोगुनी पंक्तियाँ |
बोल्ट मात्रा: |
5 |
असर -विधा: |
FC41245 |
FC41245 असर आकार: |
25*60*45 मिमी |
FC41245 असर वजन: |
0.685 किलोग्राम |
प्रमाणपत्र: |
ISO9001-2000 / CE / ROHS / UL |
पंक्ति: |
दोगुनी पंक्तियाँ |
बोल्ट मात्रा: |
5 |
FSK Automobile Hub Bearing FC41245 374883 BTH1209B 713101610 BTH1209E For Citroen
Bearing Specification
| FSK BEARING Model Number | FC41245 Bearing |
| Replaceable Models |
374883 BTH1209B 713101610 BTH1209E |
| Part Name | Wheel Hub Bearing |
| Application | Citroen |
| Material | Gcr15 Chrome Steel |
| Row | Double Rows |
| ABS Sensor | With |
| Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Dimensions(mm)(d*D*b) | 25*60*45 mm |
| Weight / Mass ( KG ) | 0.685 kg |
| Hole Circumference | Contact Us To Know |
| Thread size |
Contact Us To Know |
| HS Code |
8482800000 |
| Others OEM Number | |
| 374883 | 6110723 |
| 16930PU | 6110945 |
| 201014 | WM2019 |
| 59606 | 11147500025 |
| 621048 | MWK0102 |
| 10343159 | KR3754 |
| 71674 | PEWB11414 |
| PAL61016 | LVBW1234 |
| DAC25600045 | VBK1234 |
| DAC30620048 | RK00220 |
| 805052 | PWB1095 |
| RS1297 | 761925 |
| 290RD00042 | KH10079 |
| 197579 | 2466408 |
| 110131210 | HBK507501 |
| RA4047 | 602893 |
| RA4047H | 38877 |
| 275112565 | PTA3210188 |
| 050644B | PBK3680 |
| 052421B | PW25600045CSHD |
| BWK982 | 86110129 |
| KRT2750 | R2095 |
| PWK0680 | BDC5425 |
| BSG70600007 | QWB1327 |
| H2C041BTA | RCAK1023 |
| 510930 | RKB2174 |
| RC4047 | 654W0083 |
| RC4047H | 5949 |
| 31625 | 460214 |
| CBK060 | 713640470 |
| KWD1199 | VKBA3680 |
| BK1455 | BTH1209E |
| W413259 | FC41245 |
| R1093K | R15948 |
| DP2010100045 | 27554 |
| DWB9055 | SKWB0180082 |
| R23680K | LO03680 |
| DWB3680 | T474075 |
| EBK1941 | 4328658SX |
| 1623946980 | 62946609 |
| FWBK1012 | 2217003 |
| 13551 | 80PE0108 |
| 46609 | KR326 |
| TOP06540011 | KR15948P |
| FBK982 | 722321 |
| 460214 | WB1725 |
| FR691782 | 853010268 |
| FWB0193 | V420213 |
| WB0473K | RL1522 |
| GK3680 | RK4047H |
| 10-1330 | 4105680 |
| 304047 | 18900091012 |
| 830865 | LKBA62060 |
| 5600117 | WB1217 |
| 853010268 | 26360 |
| KWB982 | 3680SETMS |
| 22187Z | MAX330515 |
| RK4047 | 74075 |

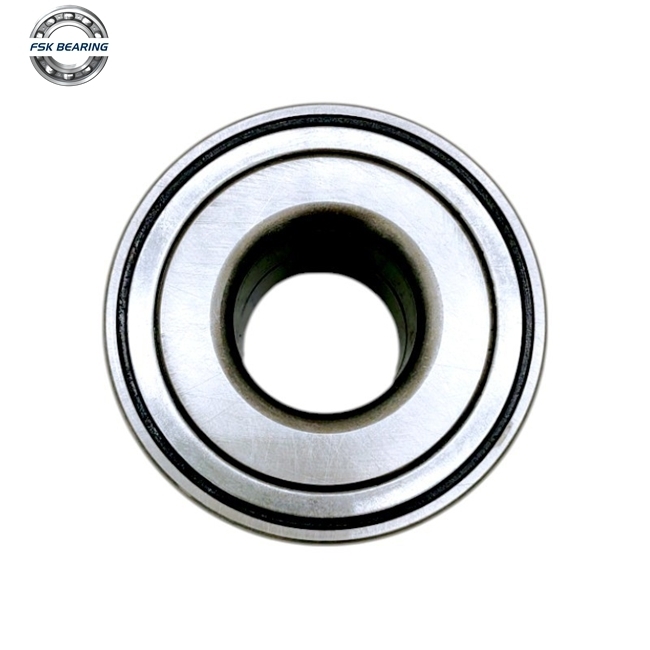

Bearings Detailed Pictures
Applicable Models
| Motorcycle Type | Years | Engine | Displacement | Power | Type |
| Citroen (imported)C4 Coupe (LA)1.416V | 2004-2011 | KFU(ET3J4) | 1360 | 65 | Coupe |
| Citroen (imported)C4 Coupe(LA)1.616V | 2004-2011 | NFU(TU5JP4) | 1587 | 80 | Coupe |
| Citroen (imported)C4 Coupe (LA)1.6 HDi | 2004-2011 | 9HV(DV6TED4B),9HV (DV6TED4BU),9HX(DV 6ATED4) |
1560 | 66 | Coupe |
| Citroen (imported)C4 Coupe (LA)1.6 HDi | 2004-2011 | 9HY(DV6TED4),9HZ (DV6TED4) |
1560 | 80 | Coupe |
| Citroen (imported)C4 Coupe (LA)1.6 THP | 2008-2011 | 5FT(EP6DT) | 1598 | 103 | Coupe |
| Citroen (imported)C4 Coupe (LA)1.6 THP 150 | 2008-2011 | 5FX(EP6DT) | 1598 | 110 | Coupe |
| Citroen (imported)C4 Coupe (LA)1.6VTi 120 | 2008-2011 | 5FW(EP6) | 1598 | 88 | Coupe |
| Citroen (imported)C4 Coupe(LA)2.016V | 2004-2010 | RFK (EW10J4S) | 1997 | 130 | Coupe |
| Citroen (imported)C4 Coupe(LA)2.016V | 2004-2007 | RFN (EW10J4) | 1997 | 100 | Coupe |
| Citroen (imported)C4 Coupe (LA)2.0 HDi | 2004-2010 | RHR(DW10BTED4) | 1997 | 100 | Coupe |
| Citroen (imported)C4 Coupe (LA)2.0 HDi | 2008-2011 | RHF(DW10BTED4) | 1997 | 103 | Coupe |
| Citroen (imported)C41(LC)1.416V | 2004-2011 | KFU(ET3J4) | 1360 | 65 | Hatchback |
| Citroen (imported)C41(LC)1.616V | 2004-2011 | NFU (TU5JP4) | 1587 | 80 | Hatchback |
| Citroen (imported)C41(LC)1.616V Bio-Flex | 2007-2008 | NFU (TU5JP4) | 1587 | 80 | Hatchback |
| Citroen (imported)C41(LC)1.6HDi | 2004-2011 | 9HY(DV6TED4),9HZ (DV6TED4) |
1560 | 80 | Hatchback |
| Citroen (imported)C4I(LC_)1.6 HDi | 2004-2011 | 9HV(DV6TED4B),9HV (DV6TED4BU),9HX(DV 6ATED4) |
1560 | 66 | Hatchback |
| Citroen (imported)C41(LC_)1.6 THP 140 | 2008-2011 | 5FT(EP6DT) | 1598 | 103 | Hatchback |
| Citroen (imported)C4I(LC_)1.6 THP 150 | 2008-2011 | 5FX(EP6DT) | 1598 | 110 | Hatchback |
| Citroen (imported)C41(LC_)1.6 VTi 120 | 2008-2011 | 5FW(EP6) | 1598 | 88 | Hatchback |
